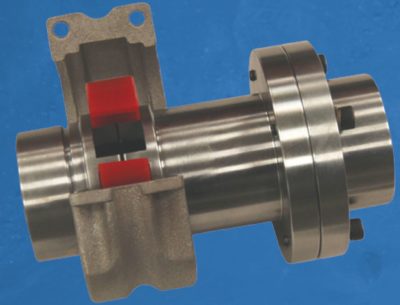

QUICK FLEX Single-Ended Spacer Couplings
- Solid and split covers are designed to accommodate higher speeds and increased torque.
- Inherently balanced from precision machining for high-speed applications.
- Design dampens torsional vibration and shock to help extend life of the coupling and surrounding components.
Resources
QUICK FLEX Single-Ended Spacer Couplings Product Information
Whatever your application demands, you’ll find a wide range of Quick-Flex couplings designed to suit your needs. Choose from multiple insert and cover configurations that withstand some of the most extreme environments.
- Twelve sizes with bores ranging from ranging from 9.4 mm to 285 mm, 0.37 inches to 11.25 inches.
- Designed for continuous torque levels from 0.043 kNm to 188.8 kNm, 377 in-lbs to 1,670,826 in-lbs.
- Designed for peak torque levels from 0.085 kNm to 377.5 kNm, 754 in-lbs to 3,341,562 in-lbs.
- Couplings accept shaft misalignment, up to 2 degrees.
- Split cover options help resist axial separating force under high torque.
- Standard and double-ended spacer couplings available for shaft separations of 25.4 mm to 3,048 mm, 1 inch to 120 inches, for increased application acceptance.
- Four bore options available to meet customers’ needs:
1) Bored, keyed and set screws style – clearance and interference fit;
2) Bushing style; 3) Splined style; and 4) Mill motor style. - Four insert choices for varying torque needs and temperature ranges up to 177° C (350° F).
A broad overview of the QUICK FLEX Single-Ended Spacer Coupling product line is summarized below. To get specific product component data, please visit the QUICK FLEX Digital Parts Catalog.
 |
Single-Ended Spacer Coupling with High-Speed Cover |
 |
Single-Ended Spacer Coupling with High-Speed Split Cover |
 |
Single-Ended Spacer Coupling with Aluminum High-Performance (HP) Cover |
|
Single-Ended Spacer Coupling with Aluminum Low Speed Cover |
